Description
Holleys EFI Crank Trigger Kit is engineered to provide an accurate crank speed & position signal to Holley EFI systems in the most-demanding, high horsepower, racing applications. Crank position is measured every 10 degrees as opposed to every 45 degrees for a standard 4-Magnet, MSD style Crank trigger. It is designed for use on early model BBC Chevy applications using a standard ATI or Fluidamper style balancer up to 7-1/4 in diameter.
Resources
Installation Instructions
Specifications:
| Description_ASC | Holley Performance Emission Code 4: This part is legal for sale or use on Racing Use Only Vehicles. The following vehicles are considered Racing Use Only Vehicles: Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street. WARNING: It is against the law to install this part on an Emissions Controlled Vehicle |
| Description_DEF | Ignition Crank Trigger Kit |
| Description_DES | Crank Trigger Kit |

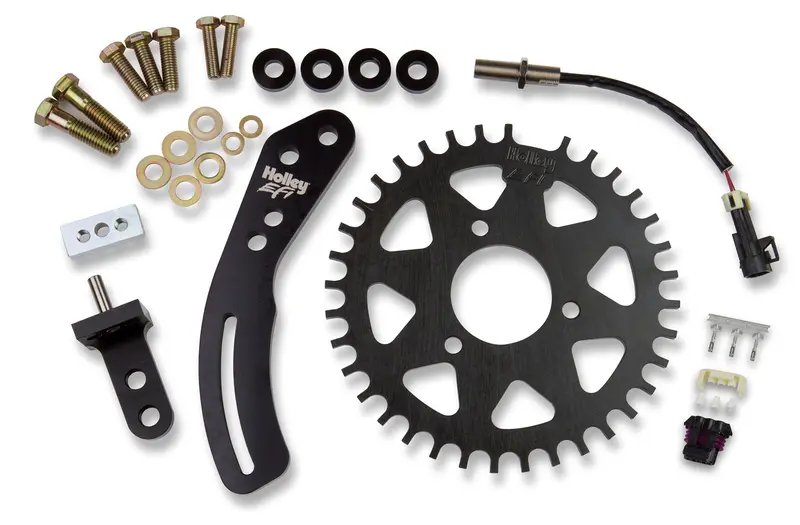

| Description_EXT | Crank Trigger Kit; 36-1 Tooth; For Use w/Holley EFI; Incl. Custom 3 Wire/Ferrous Target/Hall Effect Sensor w/M12X1mm Threads; |
| Description_FAB | All Grade 8 & Mil. Spec Mounting Hardware |
| Description_FAB | Black Zinc Oxide Finish For Corrosion Resistance/Striking Looks |
| Description_FAB | Crank Wheel Centers Off Of The Balance Hub No Centering Ring |
| Description_FAB | Mount Brackets w/Black Anodized Finish/Laser Etched EFI Logo |
| Description_FAB | w/M12X1Mm Threads For Finer Gap Adjustment |
| Description_INV | CRANK TRIGGER KIT; 8 INCH BBC 36-1 |
| Description_MKT | Holleys EFI Crank Trigger Kit is engineered to provide an accurate crank speed & position signal to Holley EFI systems in the most-demanding, high horsepower, racing applications. Crank position is measured every 10 degrees as opposed to every 45 degrees for a standard 4-Magnet, MSD style Crank trigger. It is designed for use on early model BBC Chevy applications using a standard ATI or Fluidamper style balancer up to 7-1/4 in diameter. |
| Description_MKT | Holleys EFI Crank Trigger Kit is engineered to provide an accurate crank speed & position signal to Holley EFI systems in the most-demanding, high horsepower, racing applications. Crank position is measured every 10 degrees as opposed to every 45 degrees for a standard 4-Magnet, MSD “style” Crank trigger. It is designed for use on early model BBC Chevy applications using a standard ATI or Fluidamper “style” balancer up to 7-1/4 in. in diameter. |
| Description_SHO | CkshftTriggerKt |
| Diameter (in.) | 8 |
| finish | Black Zinc Oxide |
| height | 2.2 |
| length | 10.4 |
| WARNING CA Proposition 65 | No |
| weight | 3.05 |
| width | 10.6 |
